IceBear

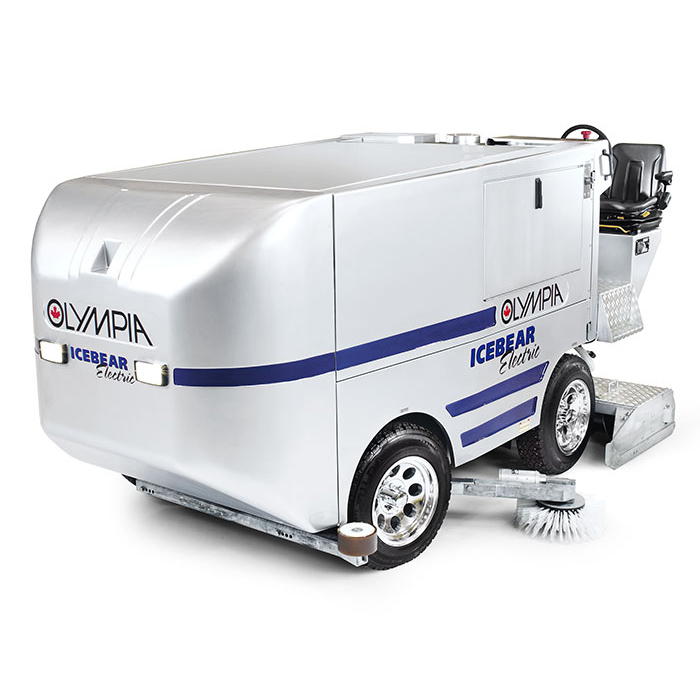

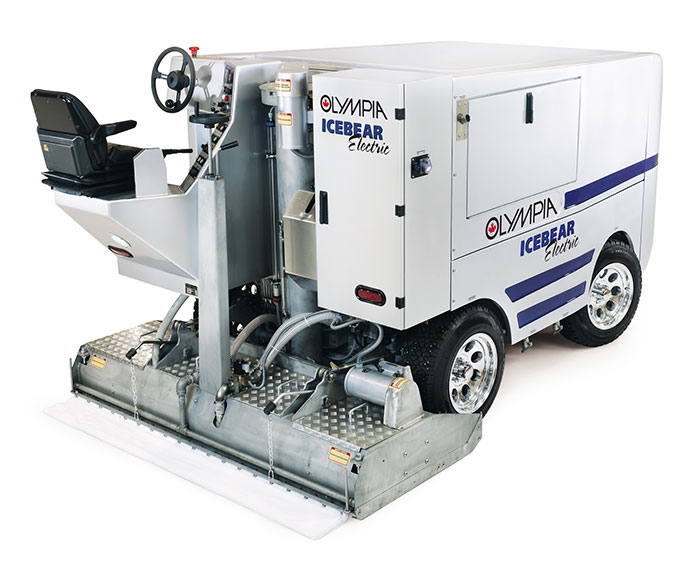

Designed with ease of operation in mind, the OLYMPIA ICEBEAR Electric’s simplified operational controls are conveniently located within reach, allowing the operator to make precise blade adjustments during the cut.

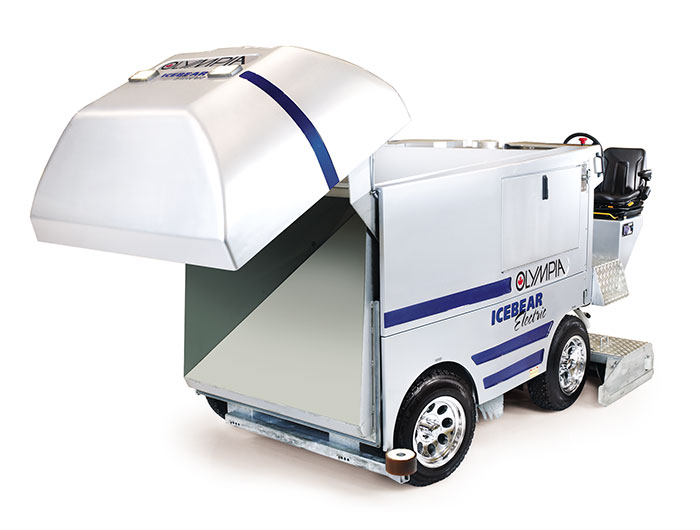

With its stainless-steel construction, the OLYMPIA ICEBEAR Electric has a snow bin capacity of 119 cubic feet (3.37 cubic metres) and an open-bin height of only 104 inches (2.64 metres). This is ideal in low ceiling applications requiring as little as two feet (0.61 metres) of front opening clearance.

Request a Quote


Category: Product ID: 99

Description

OLYMPIA ICEBEAR FEATURES
  • AC drive motors on all 4 wheels
  • Stainless-steel construction
  • Aluminum alloy wheels
  • Suspension safety seat
  • Proven battery technology
  • Board brush
  • Automatic snow breaker
  • Automatic towel lift
  • 5 in (6.35 cm) offset conditioner
  • Replaceable conditioner runners
  • Front & rear guide wheels
  • Full instrumentation
  • Lighting package head lights & bin lights
  • Parking brake
  • Front dump with wash
  • Vertical auger elevator system
  • 4-wheel hydraulic disk brakes
  • Adjustable traction control
  • Power steering
  • Tire wash
  • Wash water (with auto shutoff)
  • Speed-related ice-making water system
  • Auto water fill system
  • Integrated battery watering system
OPTIONAL
  • Rear-mounted hydraulic edger
  • Laser ice-leveling system
SPECIFICATIONS AND CAPACITIES
Overall length 152.5 in 387.35 cm
Length bin open 172.5 in 438.15 cm
Height bin closed 86 in 218.44 cm
Height bin open 104 in 264.16 cm
Overall width 88 in 224 cm
Blade width 84 in 213.36 cm
Turning radius 154 in 391.16 cm
Net weight 9,944 lbs 4,520 kg
Gross weight 12,694 lbs 5,758 kg
Snow bin capacity 119 cu ft 3.37 cbm
Ice-making water capacity 177.36/213 imp/US gal 806 l
Wash water tank capacity 79.10/95 imp/US gal 359 l
Hydraulic oil quantity 2.49/3 imp/US gal 11 l
Battery voltage 80 V
Battery capacity up to 660 amp hours
Total driving & operating power 16 kW
